Description

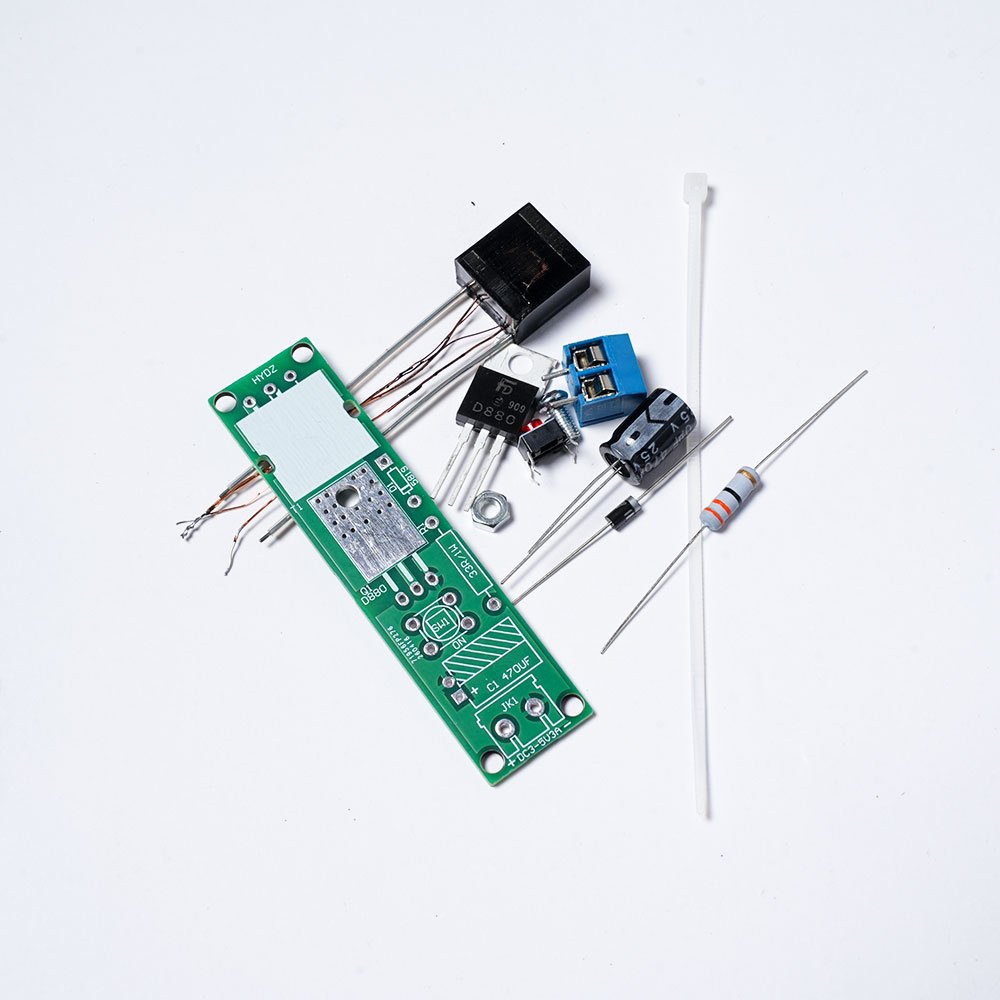

This is a DIY Electronic Lighter Kit which can ignite the cigarette paper due to very high temperature available at output. It is very small in size and require 5V and atleast 3A of current to operate but if you use 3V supply then the current demand will increase. So you need to connect an external battery to power the device like a 18650 cell our other lithium ion pouch cells if you want to keep the weight low and make the module portable. It is really easy to plug all the components on the PCB and solder them. It can also create a low hum electric arc if wires are close enough. It has transistor amplifier on board and can output voltage in range of 0.5kV to 0.8kV.
Specifications
- Voltage and current power: DC 3-5V, current 5A, more than 15W. It is recommended to use a 3.7V 18650 lithium battery.
- Output pulse voltage: 0.5kv-0.8kv
- Working frequency: 20khz-25khz
- Arc distance: 5-8 mm
Package Includes:
1 x DIY Electric ARC Lighter KIT
